ARX-0123A
Item No. : ARX-0123A

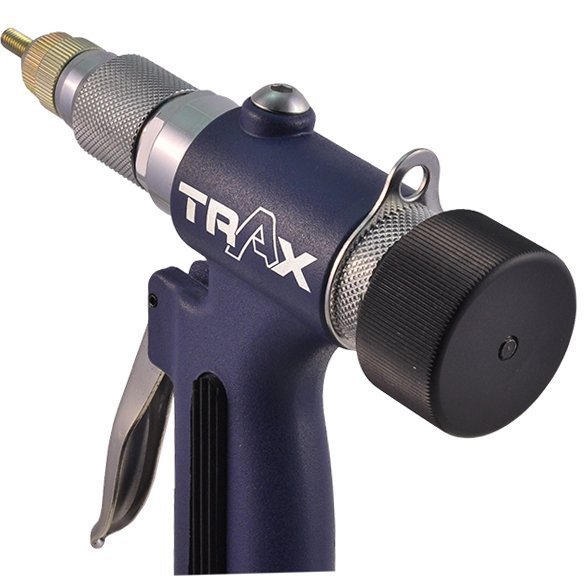

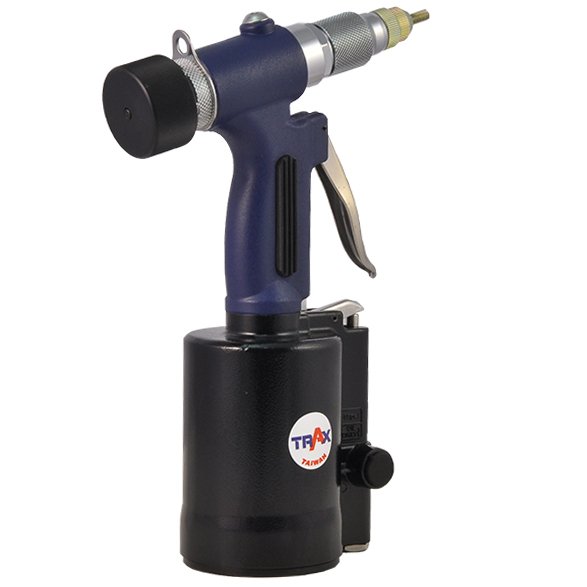

Description: M4~M10 Air Nut Riveter [ARX-0123A]
Specifications:
| Traction Power (kgf / lbf) | 1,650 / 36,38 at (85psi) |
| Stroke Length (mm) | 5~10 |
| Net Weight (kg) | 1.55 |
| Working Air Pressure (psi) | 78 ~ 92 |
| Width×Height(mm) | 190×270 |
| Air Consumption (Liter/Stroke) | 1.5 |
| Air Inlet (PT) | 1/4” |
| Capacity | Steel Rivets : Min. M4 Max. M10 Stainless Rivets : Min. M4 Max. M8 |
| Packing | 6Pcs/CTN, N.W.:14kg, G.W.:15kg CUFT:2.3” |
